Acoustic Glass Partition System
Description
Glass Partitions / Glazed Partition Systems
Glass Partitions, also known as Glazed Partitions, are widely used to create cabins, meeting rooms, and defined spaces within offices, commercial buildings, and institutions. They allow natural light to flow freely while maintaining visual openness, making workplaces feel modern, spacious, and connected.
Traditional glass partitions—typically framed with bulky aluminium channels or wood, or designed as fully frameless systems—often come with limitations such as longer installation time, reduced flexibility, and higher modification costs. As design and functionality demands evolve, more efficient and adaptable systems are preferred.
Konstrux Modular Aluminium Glass Partition Systems
Konstrux offers advanced modular aluminium snap-fit glass partition systems designed for modern interiors. These sleek systems allow quick installation and effortless glass replacement without the need for floor or ceiling chasing. Their modular construction enables easy dismantling and reinstallation at new locations with minimal material wastage.
Engineered for flexibility and performance, Konstrux glass partition systems are available in a wide range of cross-section profiles and support 8mm to 12mm glass thickness, including:
Single glass
Double glass
Vacuum Insulated Glass (VIG / DGU)
Select models feature interchangeable snap-fit mouldings in multiple colour options, allowing designers to achieve distinctive aesthetics while maintaining structural efficiency.
Two of our modular systems are designed to accommodate single, double, or VIG glass on the same base profile, making future acoustic upgrades simple and cost-effective—without replacing the entire framework.
Design Versatility & Acoustic Performance
Konstrux also provides grid glass / Crittall / Georgian bar partition systems, offering architects and interior designers greater creative freedom while maintaining clean lines and modern appeal.
Our glass partitions are engineered to deliver high acoustic insulation, making them suitable for executive cabins, conference rooms, and privacy-focused workspaces. Select systems are designed to meet stringent sound control requirements for professional environments.
Key Features – Konstrux Aluminium Glass Partition Systems
Modular snap-fit design
Wide range of profile sizes
Minimal components for faster installation
Easy glass replacement and future upgrades
Contemporary, sleek aesthetics
High acoustic insulation performance
Eco-friendly construction using recycled aluminium
Ideal for modern, flexible workspaces
Our Products
- Acoustic Ceiling Baffles
- Acoustic Ceiling Cloud
- Acoustic Desk Divider
- acoustic-carpets
- acoustic-ceiling-lights
- acoustic-screen
- aluminum ceiling system
- Circular Acoustic Ceiling
- grooved-acoustic-sheet
- moveable-fabric-acoustic-panels
- pet-acoustic-louver-panels
- Grooved Panel
- Patterns
- 3D Embossed
- 3D Etched
- Inlay
- Fluted Panels
- Lighted Walls
- Printed

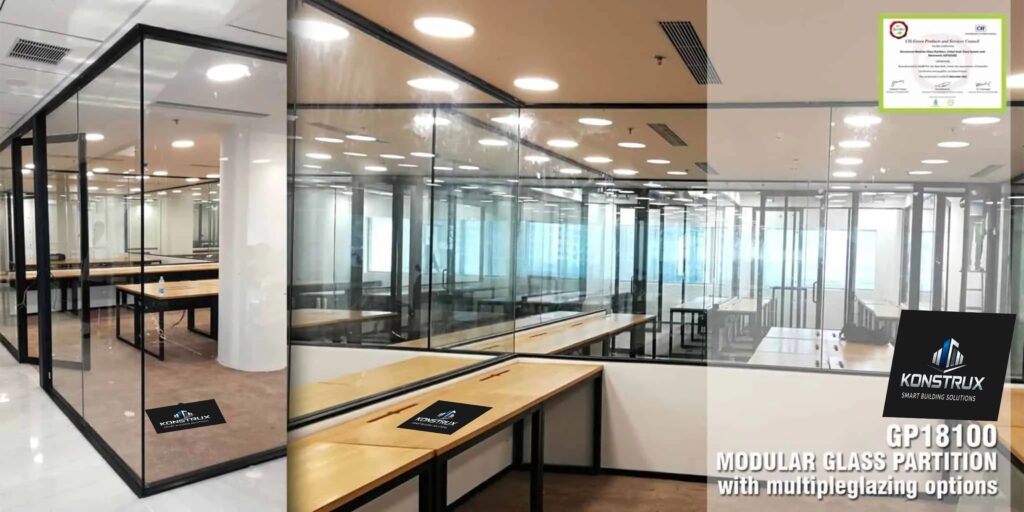

GP18100 – Aluminium Glass Partition System
100 mm Wide | Multi-Glazing Configuration
The KONSTRUX GP18100 Aluminium Glass Partition System is an advanced modular solution engineered to support multiple glazing options within a single framework. Designed for flexibility, performance, and modern aesthetics, this system adapts effortlessly to evolving acoustic and spatial requirements.
Multi-Option Modular Design
The GP18100 system is uniquely developed to accommodate:
Single Glass
Double Glass
Triple Glass
Vacuum Insulated Glass (VIG / DGU)
All within the same base profile—making it a future-ready solution for commercial and institutional interiors.
Recommended Glazing Configurations
KONSTRUX recommends the following variants under the GP18100 system:
GP18100S – Single Glass
Glass positioned centrally
Thickness options: 10 mm, 12 mmGP18100D – Double Glass
Glass positioned on both edges
Thickness options: 8 mm, 10 mmGP18100VIG – Vacuum Insulated / Double Glass Unit
Central placement
Thickness options:
18 mm (5 mm + 5 mm glass with 8 mm air gap)
24 mm (custom configurations available)
Key Advantages
Upgradeable After Installation
Glass configurations can be upgraded from single to double or VIG without dismantling the base system—ideal for improving acoustic performance over time.One System, Multiple Applications
A single partition framework can meet diverse project requirements, significantly reducing logistics, inventory, and material wastage.Seamless System Integration
Fully compatible with KONSTRUX door frames, glass doors, and demountable partition systems for a unified interior solution.Distinct Modern Aesthetics
Clean profiles and refined finishes enhance the exclusivity and visual appeal of modern workspaces.Low Maintenance & Easy Reconfiguration
Designed for quick servicing, repairs, and layout changes with minimal disruption.Sustainable & Eco-Friendly
Manufactured using recycled aluminium and compliant with green building standards, making it suitable for IGBC, GRIHA, and LEED-aligned projects.
KONSTRUX ALUMINIUM GLASS PARTITION SYSTEMS
Technical Specifications & Product Overview

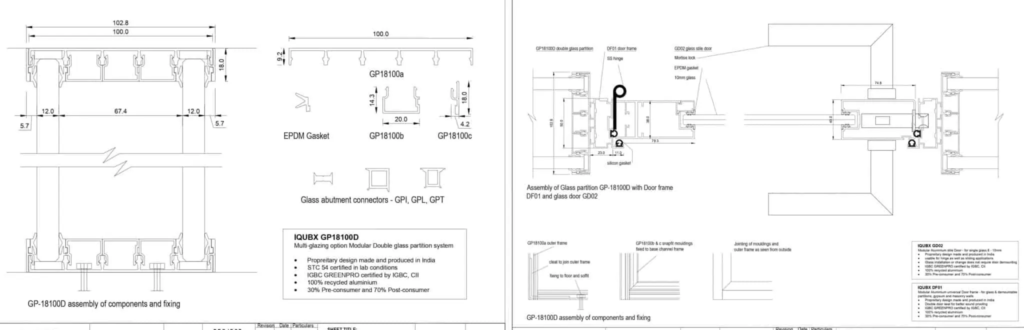

GP18100 – Aluminium Glass Partition System
100 mm Wide | Multi-Glazing Modular System
The KONSTRUX GP18100 is a highly advanced modular aluminium glass partition system designed to support multiple glazing configurations within a single base profile. It is ideal for projects requiring flexibility, high acoustic performance, and future scalability.
Technical Data
Partition assembled section: 18 × 100 mm
Main channel (GP18100A): 9 × 100 mm
Edge channel (GP18100B): 18 × 4 mm
Centre channel (GP18100C): 14 × 20 mm
VIG channel (GP18100D): 23 × 20 mm
Glass thickness compatibility:
Float glass: 8 mm to 12 mm
VIG / DGU: 18 mm to 25 mm
Finish: Raw mill finish
(Powder coating in any colour or anodizing available)
Performance & Sustainability
GP18100D certified up to STC 54
Superior acoustic insulation due to modular discontinuity across the section
Manufactured using 6063 aluminium alloy
100% recycled aluminium (10% pre-consumer, 90% post-consumer)
GREENPRO certified – suitable for IGBC, GRIHA & LEED projects
Key Advantages
Glass configuration (single / double / VIG) can be upgraded after installation
One system fulfills multiple glazing requirements, reducing logistics and wastage
Compatible with KONSTRUX door frames, glass doors, and demountable partitions
Modern aesthetics with easy maintenance and reconfiguration

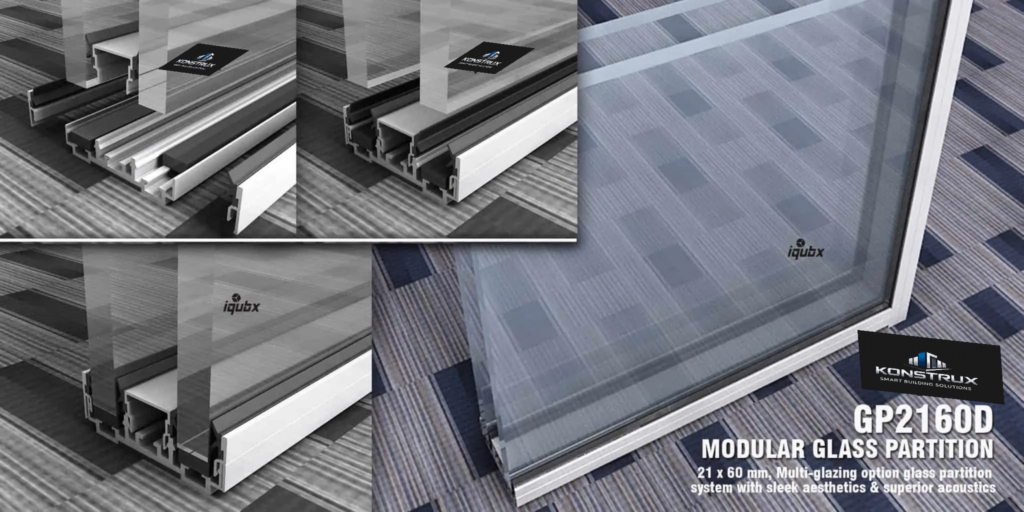

GP2160 – Aluminium Glass Partition System
60 mm Wide | Optimised Multi-Glazing System
The KONSTRUX GP2160 is a compact and optimized evolution of the GP18100 series. With a smaller footprint and enhanced joinery strength, it delivers excellent acoustic performance even with single glazing.
Technical Data
Partition assembled section: 21 × 60 mm
Main channel (GP2160A): 12 × 60 mm
Edge channel: 18 × 4 mm (shared component)
Centre channel: 14 × 20 mm (dual-groove)
VIG channel: 23 × 20 mm
Glass thickness compatibility: 10 mm to 12 mm
Base groove: 3 mm for superior detailing
Finish: Raw mill / Powder-coated / Anodized
Highlights
Supports single, double, and VIG glass
Stronger frame with internal brackets and nut-bolt joinery
Easy upgrade of glazing without dismantling
Faster installation with minimal components
GREENPRO certified, 6063 recycled aluminium
Excellent acoustic insulation due to modular design
GP4028 – Aluminium Glass Partition System
Premium Heavy-Duty Single Glass System
The KONSTRUX GP4028 is a robust, maintenance-free glazed partition system designed for superior acoustic performance and long-term durability.
Technical Data
Partition assembled section: 40 × 28 mm
Main channel (GP4028A): 40 × 26.4 mm
Edge channel (GP4028B): 40 × 4.2 mm
Recommended glass thickness: 10 mm to 12 mm
Finish: Raw mill / Powder-coated / Anodized
Key Benefits
Snap-fit modular design for easy glass replacement
No floor or ceiling chasing required
Fully demountable and reusable
GREENPRO certified, recycled aluminium construction
Excellent acoustic insulation

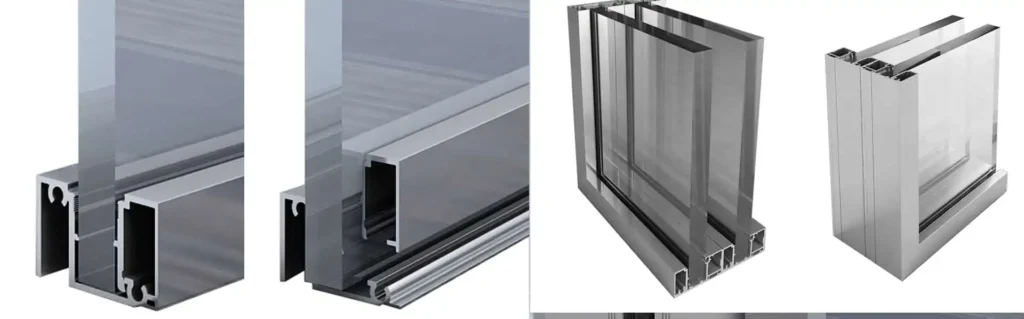

GP2510 / GP2512 – Aluminium Glass Partition System
Single & Double Glass | Indoor & Outdoor Use
The KONSTRUX GP2510 / GP2512 series replaces traditional bulky framing systems with a slim, durable, and moisture-resistant aluminium solution.
Technical Data
GP2510: 41.5 mm wide × 25 mm thick (10 mm glass)
GP2512: 50 mm wide × 25 mm thick (12 mm glass)
GP2512D: 100 mm wide × 25 mm thick (2 × 12 mm glass)
Standard lengths: 2400 mm
Custom lengths: 3000 / 3600 / 4800 mm
Finish: Raw aluminium
Advantages
Strong glass holding on all sides
Suitable for office and commercial partitions
Moisture- and termite-resistant
Quick, clean installation
GREENPRO certified
GP1510 – Aluminium Glass Partition System
Ultra-Slim Profile
The KONSTRUX GP1510 is a sleek, space-saving glass partition system with a minimal 15 mm thickness, ideal for integrated workplace environments.
Technical Data
Section size: 53.5 mm wide × 15 mm thick
Glass compatibility: 8 mm & 10 mm
Standard lengths: 2400 mm
Custom lengths: 3000 / 3600 / 4800 mm
Finish: Raw aluminium
Key Features
Glass can be assembled from both directions
Compatible with KONSTRUX modular workstation systems
Highly integrated and minimal design
GREENPRO certified, recycled aluminium
