Acoustic Baffle Ceiling System
Description
Baffle Ceiling, also known as Acoustic Sound Baffle or hanging baffle metal ceiling, according to Wikipedia, is an open type ceiling construction. It is a set of vertically hung linear profiles in various patterns and combinations, made up of aluminum , wood or any sound absorbing material, that reduces the strength (level) of airborne sound. Baffle ceiling provides a view and access to the plenum area and concrete ceiling above.
Acoustic Sound Baffles are a kind of suspended ceiling system, or drop out ceiling, an excellent choice for use in spaces that are large, have limited wall space and may require restricted visual and physical access to services at ceiling level.
Baffles Reducing the Intensity of Airborne Sound.
Why Baffle Ceiling?
Baffle Ceilings produce distinctive ambience, which is contemporary and very functional, still very aesthetic. These open ceiling constructions of various combinations and designs of baffle ceilings permit a creative view of the bare ceiling. They can be retrofitted to correct acoustic issues as well as to get a distinct style and design in interiors. They are quick to install and also allows full access to services on the ceiling level.
Existing options in baffle ceilings are very expensive and inflexible. If one wants to be different, the cost and lead time go up remarkably.
KONSTRUX Modular Aluminum Baffle Ceiling Systems BFC 1, 2, 12, 3, 4, 5
Our Products
- Acoustic Ceiling Baffles
- Acoustic Ceiling Cloud
- Acoustic Desk Divider
- acoustic-carpets
- acoustic-ceiling-lights
- acoustic-screen
- aluminum ceiling system
- Circular Acoustic Ceiling
- glass partition
- grooved-acoustic-sheet
- moveable-fabric-acoustic-panels
- pet-acoustic-louver-panels
- Grooved Panel
- Patterns
- 3D Embossed
- 3D Etched
- Inlay
- Fluted Panels
- Lighted Walls
- Printed
After creating unique system solutions like Demountable Partition Wall, Wall Paneling System and other products for interiors, KONSTRUX has now developed an innovative and creative, highly customizable, modular and multifunctional, Aluminium based Baffle Ceiling System (certified GREENPRO by IGBC, CII) for modern age interiors, unlike staid existing products. It provides unique combinations of materials, patterns, orientation, profiles, finishes and integrated lighting solutions for spaces like Airports, Railways & Metro Stations, Offices, Cafes, retail spaces as well as residential apartments. These baffle ceilings have PATENT APPLIED for their unique modular design.
KONSTRUX has one of the widest range of BAFFLE CEILING SYSTEMS and definitely the most innovative ones. They are, in fact, systems which allow lot of flexibility for design and creativity for the architects, instead of being rigid products
KONSTRUX Sound Baffle or Baffle Ceiling System is an effective and cost economical ceiling system for acoustic treatment in spaces with high sound levels such as Schools, Libraries, Entrance foyers and reception areas, Call-centers, Airports, Metro-Stations, retail areas, Malls and Industries. In fact, their unique aesthetics make them an ideal choice for any space.
Since the material installs vertically, both or multiple surfaces are exposed to sound, thus increasing the amount of surface area exposed to the sound, increasing its ability to reduce reverberation. In large volume spaces, where full false ceilings are to be avoided by designers, concrete ceilings may result in bad acoustical conditions, here noise can make an echo effect and multiple sounds may make conversation difficult and disturbing. In such cases, KONSTRUX baffle ceilings are the ideal solutions.
The KONSTRUX baffle system is optimally appropriate for later installation, especially, wherever acoustical problems with concrete ceilings are noticed after the completion of construction work. Being simply accessible and having considerable possibilities in execution and style, Baffle ceiling is the excellent choice to have a wonderful sound system.
KONSTRUX introduces, probably, world’s first integrated lighting baffle ceiling system. Multiple and different faces can be lit with edge lit acrylic.

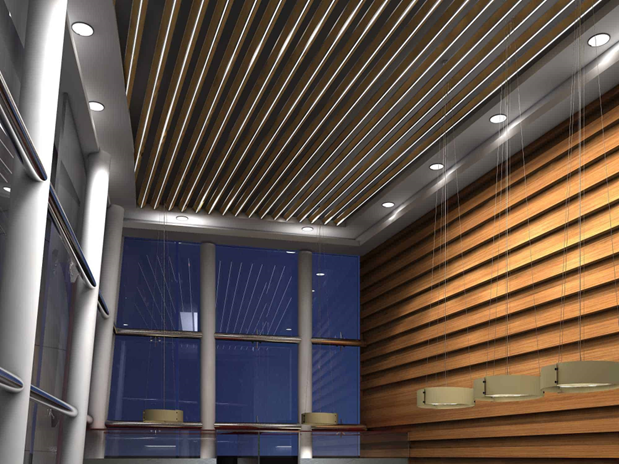

KONSTRUX baffle with wood and edgelit acrylic
Key Advantages of KONSTRUXB affle Ceiling System
- All baffle ceilings are Green Building product certified GREENPRO by IGBC, CII, based on 100% recycled aluminium
- Unique design with PATENT APPLIED on BFC1, 2 and 12
- Same profiles can be assembled in 6 different combinations of shapes and orientations in case of BFC1, 2 and 12. Other baffle systems like BFC3 allows any finish and height (dimension), and BFC 5 allows versatile shaped stacking modular system to fire the imagination of the designers
- Highly customizable Modular systems – Endless combinations and permutation of patterns and finishing materials in various baffle ceiling systems, which are Modular by design, to suit the functional, aesthetical & acoustic requirements – lacquered glass, laminated ply or prelaminated board, edge-lit acrylic, cork, printed vinyl, polished veneer and so on
- Can incorporate sound absorbing materials like a cork as per requirement, at a very low cost, in most of the systems
- Integration of Light possible on various faces providing a unique look. KONSTRUX introduces, probably, world’s first integrated lighting baffle ceiling system in BFC1, 2, 12, and BFC5
- These innovative baffle ceiling system can be used in all kind of interiors like Malls, offices, Apartments, Hospitals, Schools, Universities, Metro/Railway Stations, Airports and even in homes
- Easy to relocate and reuse with a change of finish possible
- Easy to Assemble/Dismantle/Reuse.
- Easy accessibility to the ceiling services like piping, wiring, ductwork for maintenance work
- Minimum Components for Logistics
- Almost zero maintenance
- Very economically priced

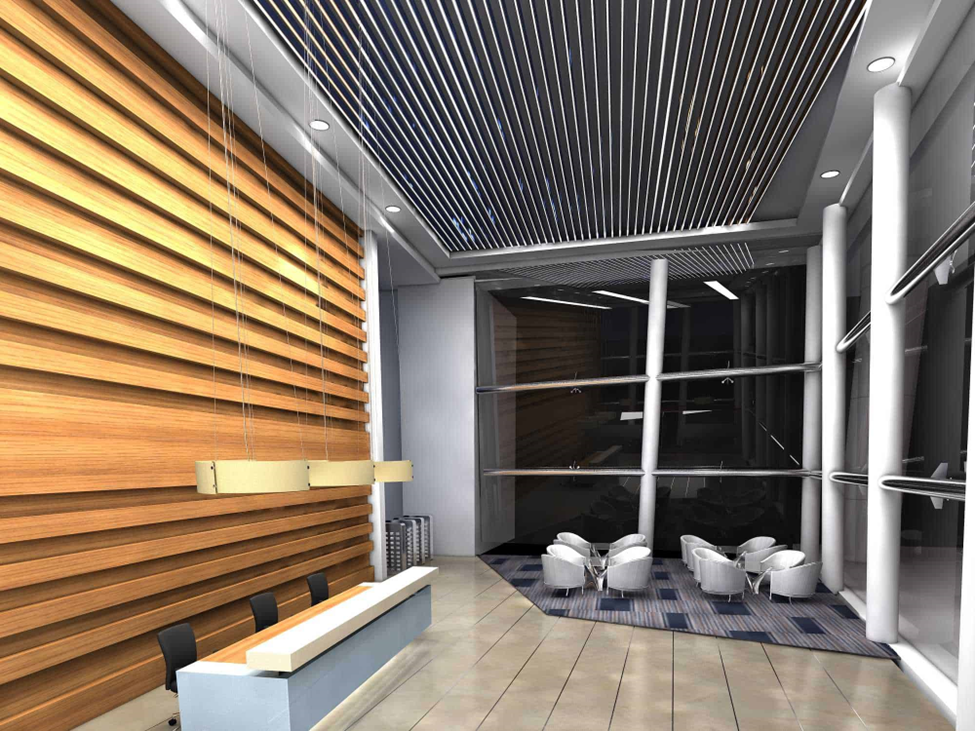

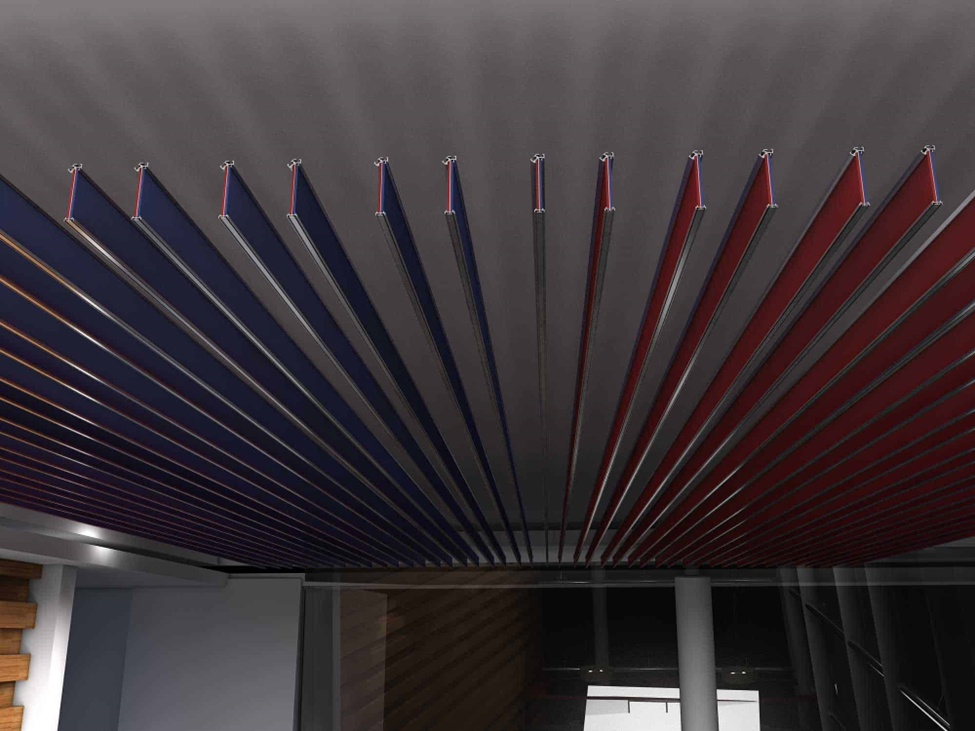

KONSTRUX BFC 1, 2, 12 Baffle System
Our Innovative Baffle Ceiling System BFC 1, 2, 12 has mainly Two Aluminium Section Profiles; one is KONSTRUXBFC-1 and second is KONSTRUXBFC-2. The USP of KONSTRUX Baffle ceiling system is that the KONSTRUXBFC-1 and KONSTRUXBFC-2 can also be combined to form a new type of Baffle System called as KONSTRUXBFC-12, and all of them can be hung in two different angles. This allows a possibility of 6 combinations of shapes. These shapes can be hung in different patterns. further, these shapes and patterns can be finished with endless different combinations of colours and materials
KONSTRUXBFC-1 is one of a kind linear slim Aluminium channel, that has a capacity to hold various types of materials and a huge number of material combinations to provide great aesthetic looks to the ceiling.
The capability of holding different types of materials on each exposed surface makes it possible to provide two different types of patterns visible from two opposite sides of the room. It can even accommodate edge-lit acrylic for interesting light effects.

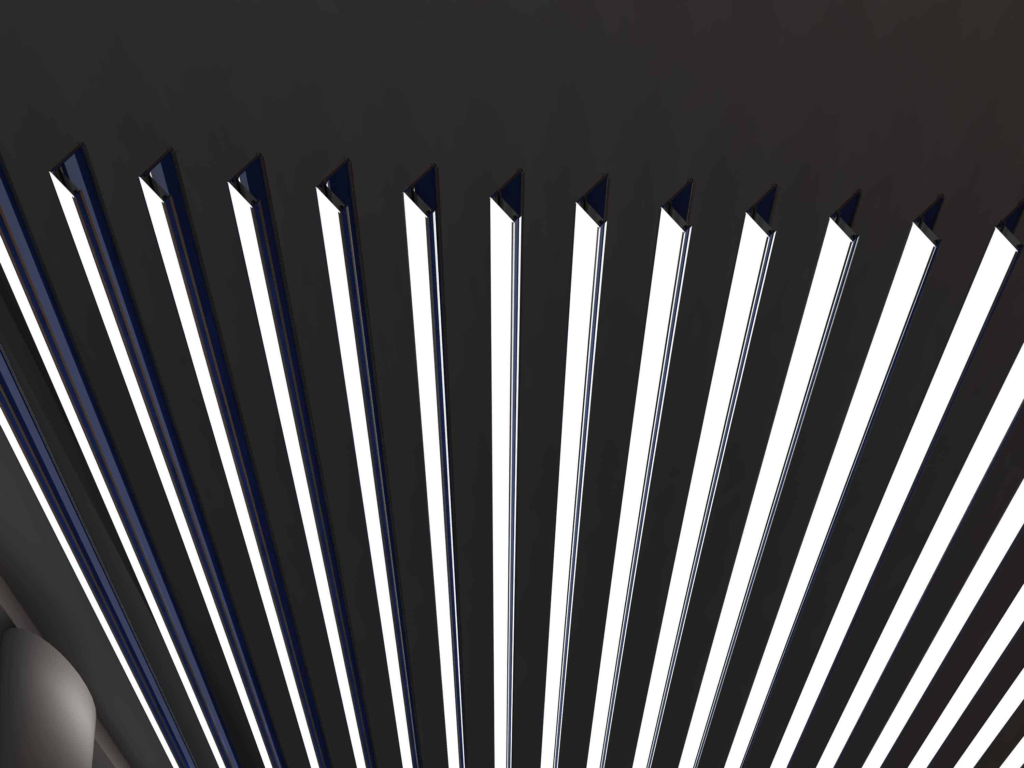

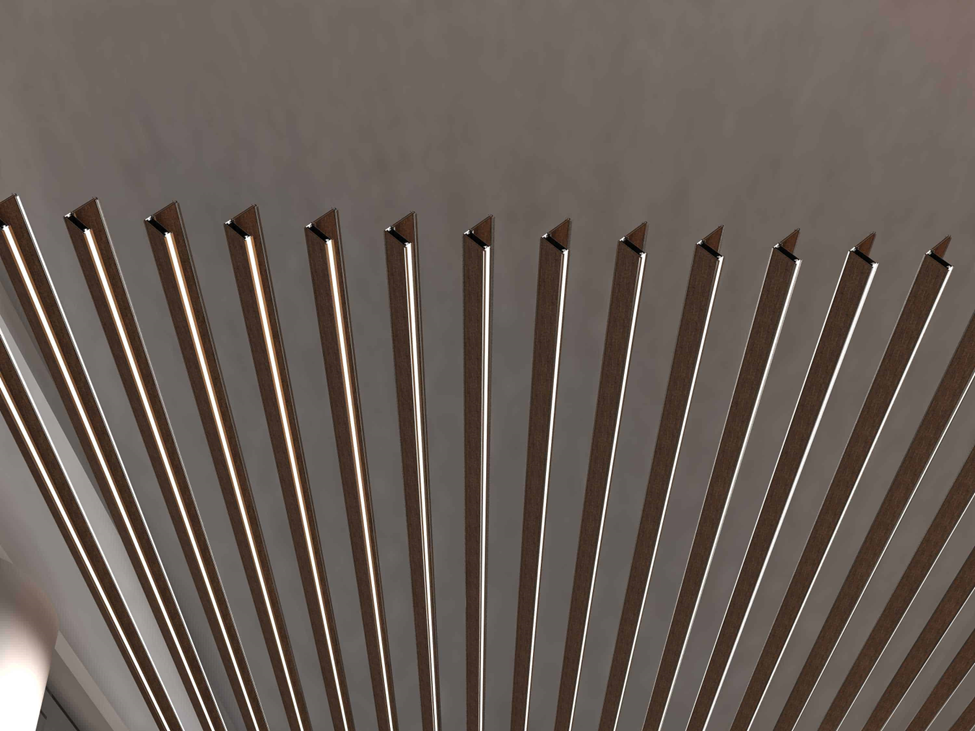

KONSTRUX edgelit linear profile
According to the need or choice of the customer, we can use this profile either vertically straight or at 45-degree angle.
KONSTRUXBFC-2 is a rectangular Aluminium channel with a slight twist. It can accommodate a huge number of material combinations on three different wall surfaces, including edge-lit acrylic.
The design possibilities are simply endless for creating distinct spaces.

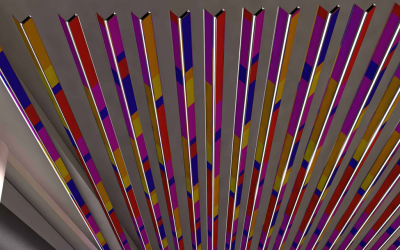

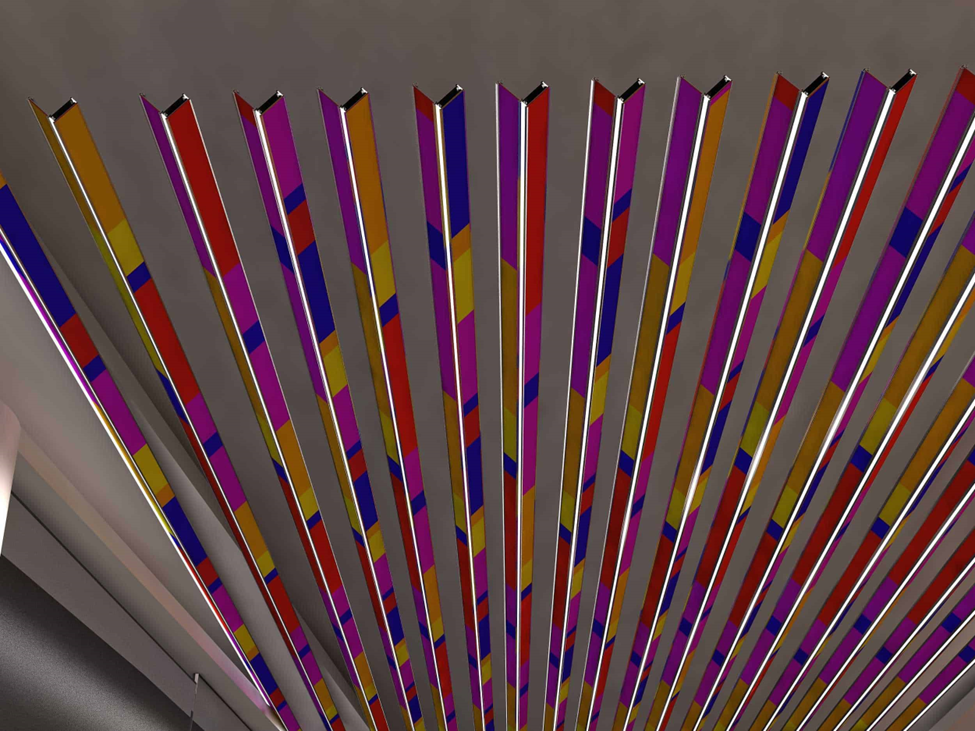

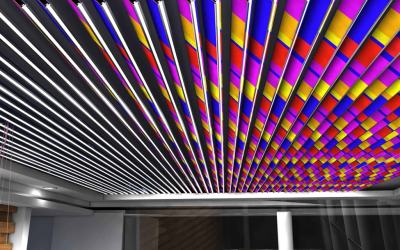

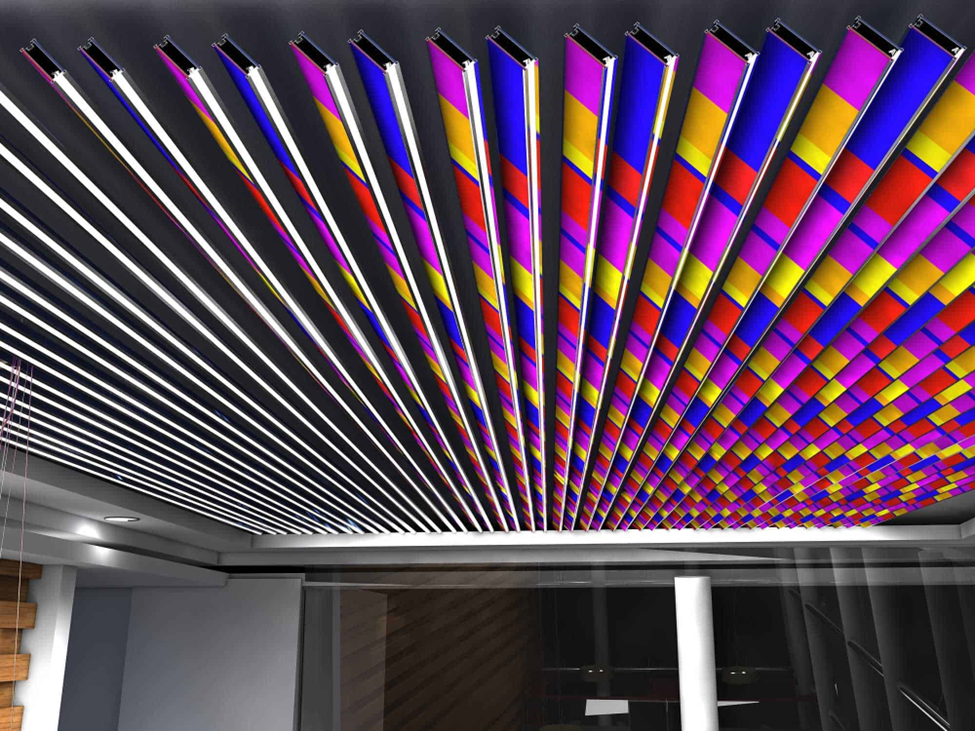

KONSTRUX BFC-2 Baffle Ceiling System.
The capability of holding up to 3 different types of materials on each exposed surface makes it possible to provide two different types of patterns visible from two opposite sides of the room.
KONSTRUX rectangular profile
According to the need or choice of the customer, we can use this profile either vertically straight or at 45-degree angle.

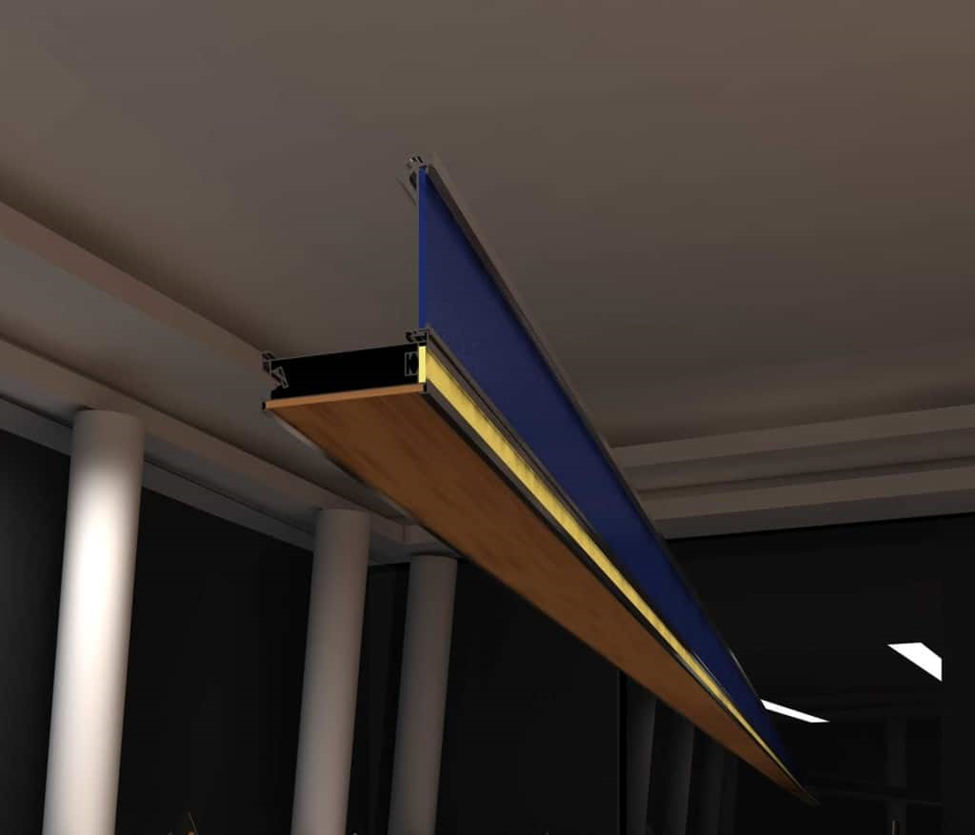

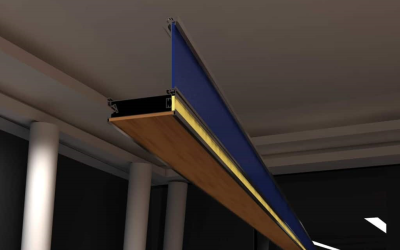

KONSTRUXBFC-12 is a combination of KONSTRUXBFC-1 and KONSTRUXBFC-2. The USP of this Baffle ceiling is that, we can merge these two profiles with each other by assembling them mechanically, providing a new innovative way of baffle hanging system and different orientation and multiple faces have a capacity to hold various types of materials and a huge number of patterns, finishes, and combinations on multiple faces.
KONSTRUXBFC-12 Baffle Ceiling System has the uniqueness of holding the very vast number of different types of materials on each exposed surface. Which makes it possible to provide different types of patterns with each assembly and orientation type. That can be visible from two opposite sides of the room.
Technical Specification
- Baffle Material – Aluminium 6063 T6
- Finish: Anodized / Powder Coated for basic channels
- Supporting finish material – Acrylic, cork sheet, prelaminated boards, fabric, wood, lacquered glass, Veneer, printed vinyl on sunboard and Edge Lit LED with acrylic sheet
All profiles are available in 2440 mm length and can be made to order up to 4800 mm in raw aluminium finish

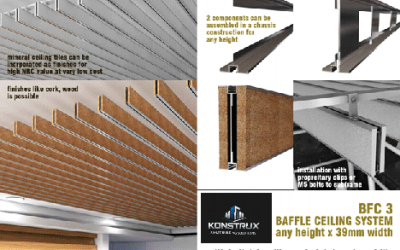

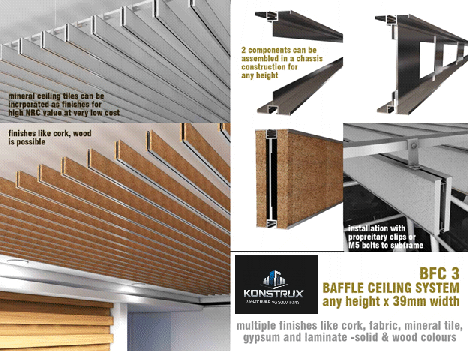

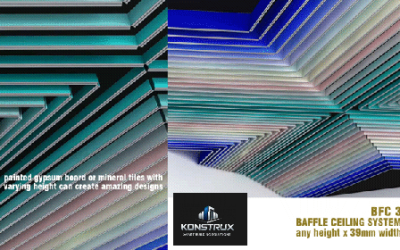

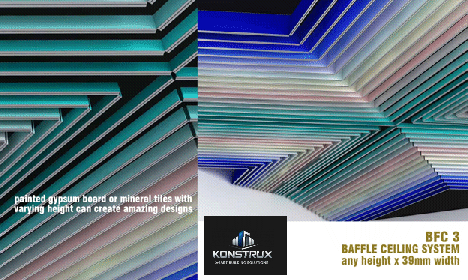

Baffle Ceiling System BFC 3 (any height x 40 mm)
KONSTRUX has launched another innovative concept in open Baffle Ceiling Systems, BFC 3, which is very economic and of very flexible size and finishes. Effectively, this system is so versatile and economic that it can be used virtually in all the projects.
KONSTRUX baffle ceiling bfc3
Similar to earlier patent applied Baffle Ceilings BFC1 and BFC2, this system can also take various kind of finishing materials, but these materials are not changeable easily. In addition, BFC3 system can be delivered in any section height. The best innovative feature of this system is that it is designed to intelligently cut down the cost of chassis frame to minimum while giving the flexibility of any height.
This modular baffle ceiling system BFC3 is a 2 component frame which can be assembled together to form a complete frame of any height as per requirement. This is made possible by making a trussed channel with intermediate aluminium plates riveted to the end channel sections. This strategy results in overall reduction of economy of material and cost.
Slots on both sides of the complete frame can hold 10 to 12mm thick finishing material like prelaminated particle board, cork sheet, veneered ply, 3mm lacquered glass on particle board backing etc. One of the most innovative use of BFC3 can be to insert 10mm thick mineral tile cuttings in the slots (Mineral fibre tiles used in grid false ceiling have high NRC value and are very cost effective). Prelaminated particle board can also have printed vinyl pasted on it. Acoustic sheets can also be backed on prelaminated ply and used in this system.
The resulting baffle ceiling is very economic. In addition the height of this system can go as high as 300 mm or may be 600 mm if the design requires so. More is the height of the section, more economic would be the per unit area cost of the ceiling.
The possibility of varying height and multiple colours or finishes can make this a very versatile design tools in hands of designers.
KONSTRUX baffle ceiling bfc3 designer ceiling
The system channels can be finished in anodizing, solid and wood powder coating, as required.
Technical Specification
- Baffle Material – Aluminium 6063 T6
- Finish: Anodized / Powder Coated for basic channels
- 39 mm x 25 mm channel, can be assembled into any height x 39mm
- Supporting finish material – cork sheet, prelaminated boards, fabric, wood, lacquered glass, Veneer, printed vinyl on sunboard, gypsum board and Mineral tile
All profiles are available in 2440 mm length and can be made to order up to 4800 mm in raw aluminium finish

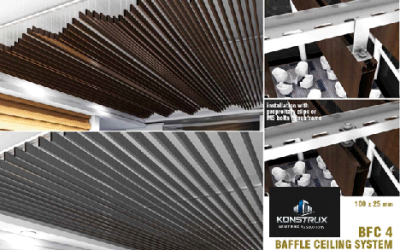

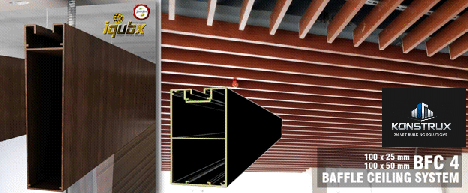

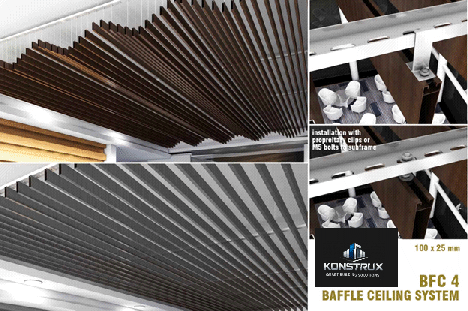

Baffle Ceiling System BFC 4 (100 x 25 mm and 100 x 50 mm)
KONSTRUX is also making a generic box design of Baffle Ceiling in sizes 100 x 25 mm as well as 100 x 50 mm to cater to client requirements.
BFC 4 comes in various finishes including solid colours as well as wood texture powder coating.
This baffle ceiling can be fixed to a sub frame of slotted angles with proprietary aluminium hanging clips or directly with help of allen bolts.
KONSTRUX baffle ceiling bfc4

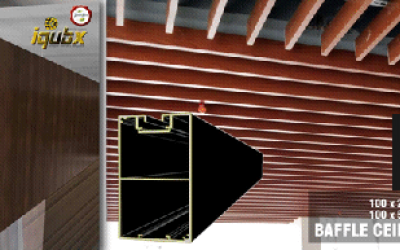

KONSTRUX baffle ceiling bfc4 2 25&50
KONSTRUX baffle ceiling bfc4 patterns
Technical Specification
- Baffle Material – Aluminium 6063 T6
- Finish: Anodized / Powder Coated (solid colours / wood finishes) for basic channels
- 100 x 25 mm / 100 x 50 mm
All profiles are available in 2440 mm length and can be made to order up to 4800 mm in raw aluminium finish

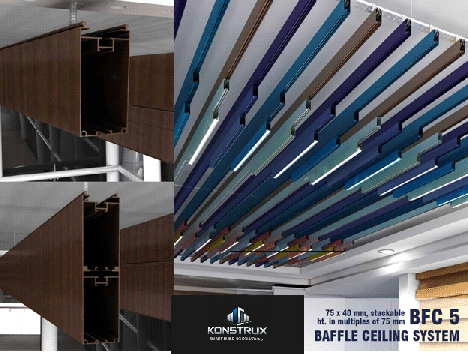

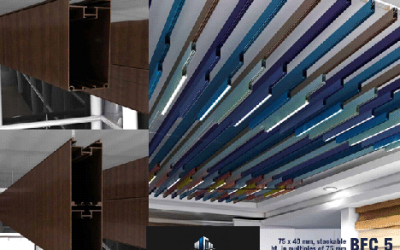

Baffle Ceiling System BFC 5 (75 x 40 mm, stackable in multiple heights of 75 mm)
BFC 05 is a truly modular Aluminium Baffle Ceiling System which can be stacked vertically in multiples of 75mm, thus providing an amazing possibility of creatively shaped baffles with array of colours and patterns. This affords an opportunity to designers and architects to create unique baffle ceilings and aesthetics for their spaces.
BFC05 can be installed in two ways – upside as well as reversed for incorporating LED lighting at bottom in entire or part length, as desired. It be installed with very simple proprietary hook section or directly with M5 bolts.
KONSTRUX baffle ceiling bfc5
Technical Specification
- Baffle Material – Aluminium 6063 T6
- Finish: Anodized / Powder Coated (solid colours / wood finishes) for basic channels
- 75 x 40 mm, stackable in multiple heights of 75 mm
All profiles are available in 2440 mm length and can be made to order up to 4800 mm in raw aluminium finish
